HIGH PRESSURE INFLATABLE EVENT DOME INSPIRED BY NATURE
AXION | FLOWER
FLOWER – a perfect combination of design and technology
DESIGN
The unique design of the AXION Flower event structure is inspired by nature, and brings new emotion and creativity to a conservative world of event displays. Different in all aspects, the AXION Flower provides positive energy to people inside with an asymmetric shape, and always fresh air inside. Each petal is an independent part of the structure, a different size, moving in its own way in a strong wind, similar to a real flower.
HANDLING
Each varying size of the AXION Flower is transportable in a van, making it suitable for event team set up. Depending on its size, a team of 3 to 6 people can completely build it within 3 to 5 hours, depending on the event terrain and event team’s experience.
TECHNOLOGY
The AXION Flower is a combination of three materials. The shape of petals is guaranteed by a patented system of high pressure pneumatic tubes, inflated to nominal pressure 2,0 bar (10x more than the standard pneumatic structures). The tension of the petal membranes is produced with FR certified, high tech Bedouinflex PU stretch membrane. The weight of whole stand is created by using steel components for the central pole and perimeter plates, in a combination with water ballast bags.
WEATHER RESISTANCE

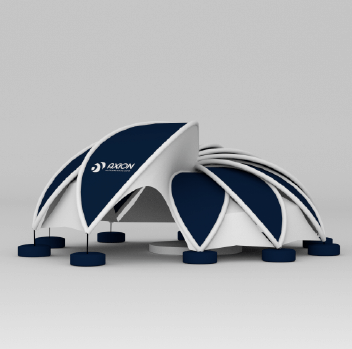

The AXION FLOWER is certified according to the Eurocode standards for wind up to 62 mph (100 km/h). In the case of a thunderstorm or strong winds, the sleeve of central pole can be retracted down to decrease the total height of the whole structure by 4.26 ft (1.3m). Water floating to the center of the stand is drained through a central gutter. Optional triangle shades around the perimeter are used to protect the inside area against water, as well as offering more shade, and increasing efficient size of the AXION Flower dome by 15%.
1| structure
2| base
3| petals
4| retractable central pole
5| ballast bags
6| triangle shades
Didn’t find what you were looking for?
DIMENSIONS
FLOWER | 10PRO | 12PRO | 14PRO | 10LITE | 12LITE | 14LITE |
width “X” (ft) | 35 ' 5" | 39 ' 4" | 45 ' 11" | 35 ' 5" | 39 ' 4" | 45 ' 11" |
length “Y” (ft) | 28 ' 3" | 33 ' 10" | 39 ' 4" | 28 ' 3" | 33 ' 10" | 39 ' 4" |
height “Z” (ft) | 14 ' 1" | 17 ' 1" | 19 ' 8" | 13 ' 1" | 15 ' 9" | 18 ' 4" |
covered area petals only A (ft2) | 560' | 883' | 1173' | 560' | 883' | 1173' |
covered area triangle shades B (ft2) | 689' | 1012' | 1346' | 689' | 1012' | 1346' |
st. structure weight (lbs) | 2424.4 | 2534.6 | 2644.8 | 771.4 | 881.6 | 991.8 |
petals weight (lbs) | 881.6 | 991.8 | 1102 | 881.6 | 991.8 | 1102 |
water ballast (lbs) | 6612 | 7714 | 8816 | 0 | 0 | 0 |
installation time (hours) | 3.4 | 3,5-4,5 | 4.5 | 4.5 | 4,5-5,5 | 5.6 |
installation person | 3.4 | 3.5 | 4.6 | 3.4 | 3.5 | 4.6 |
